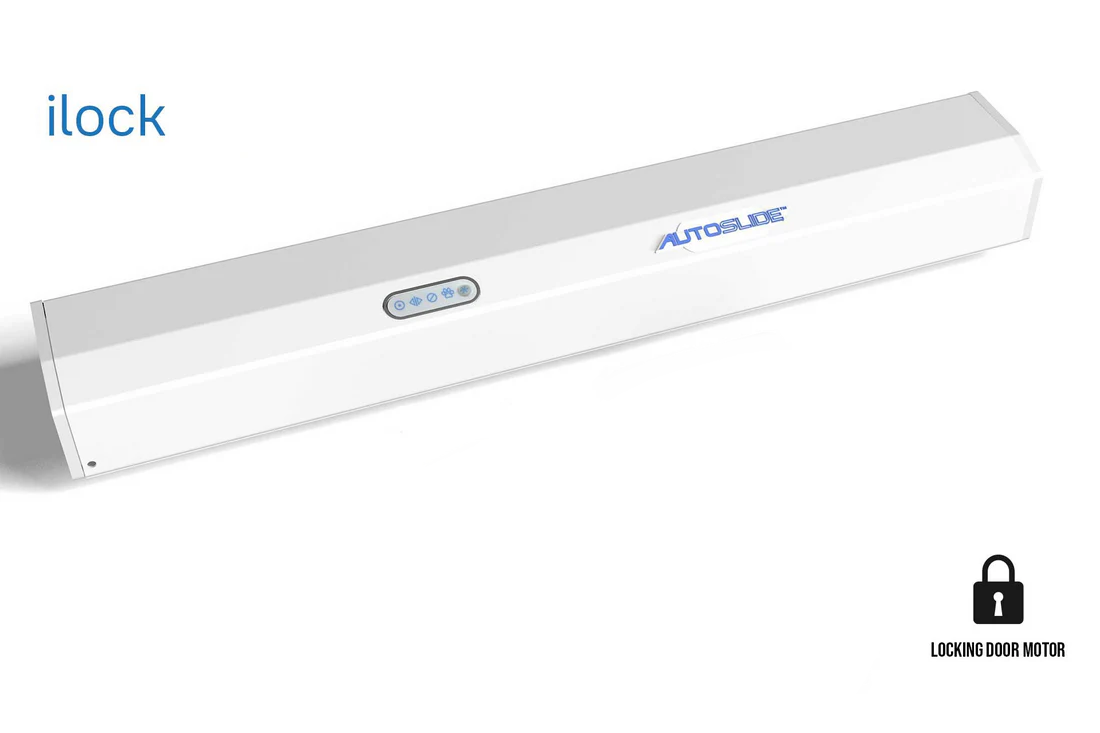

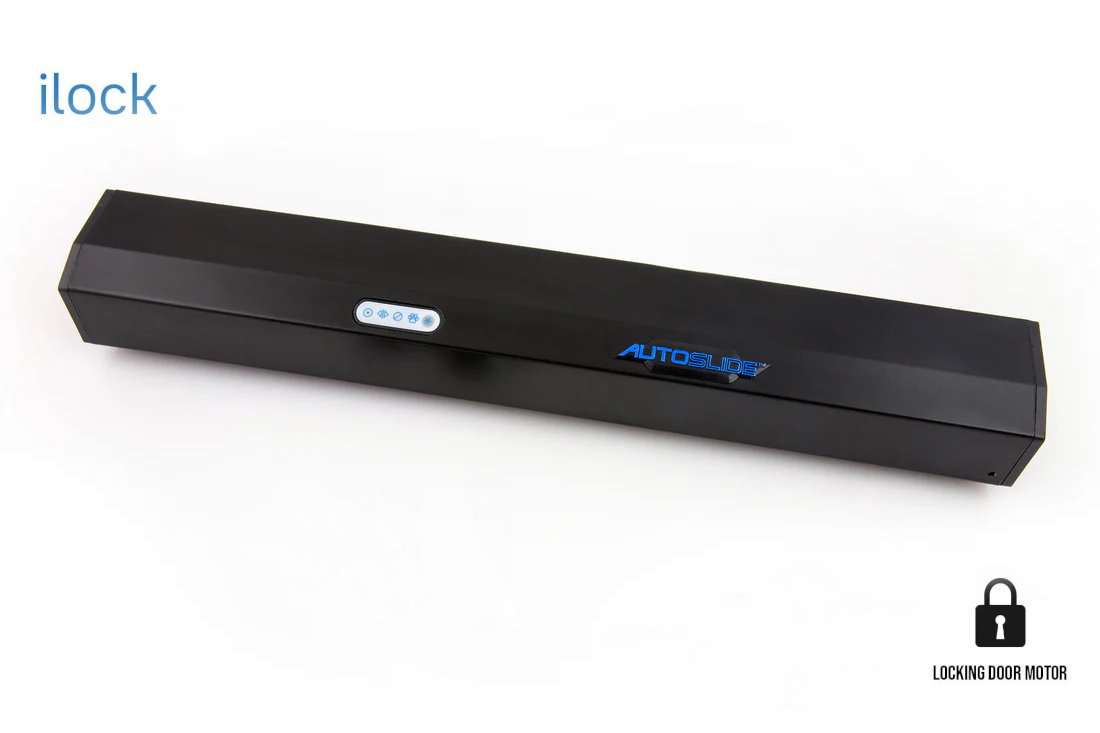

Autoslide iLock Automatic Sliding Door Starter Kit

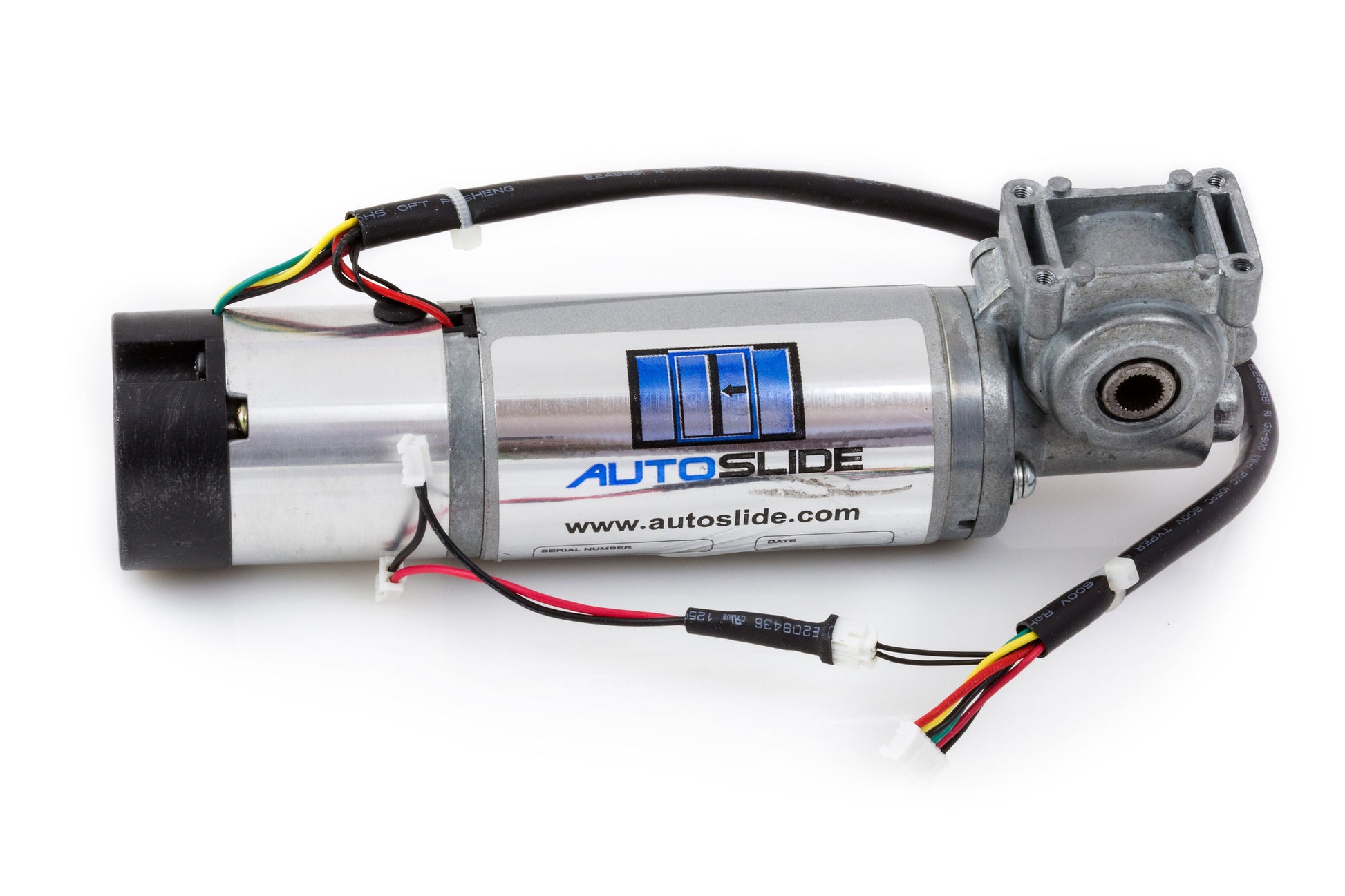

The Autoslide iLock Automatic Sliding Door Starter Kit is a secure way to automate your existing sliding doors. It provides easy access for anyone carrying an armful of goods or entertainment supplies in and out of your home. With the iLock Motor, it will secure your door and lock it automatically every time it closes. The iLock Motor is a fail-safe device, allowing easy egress if your system loses power.

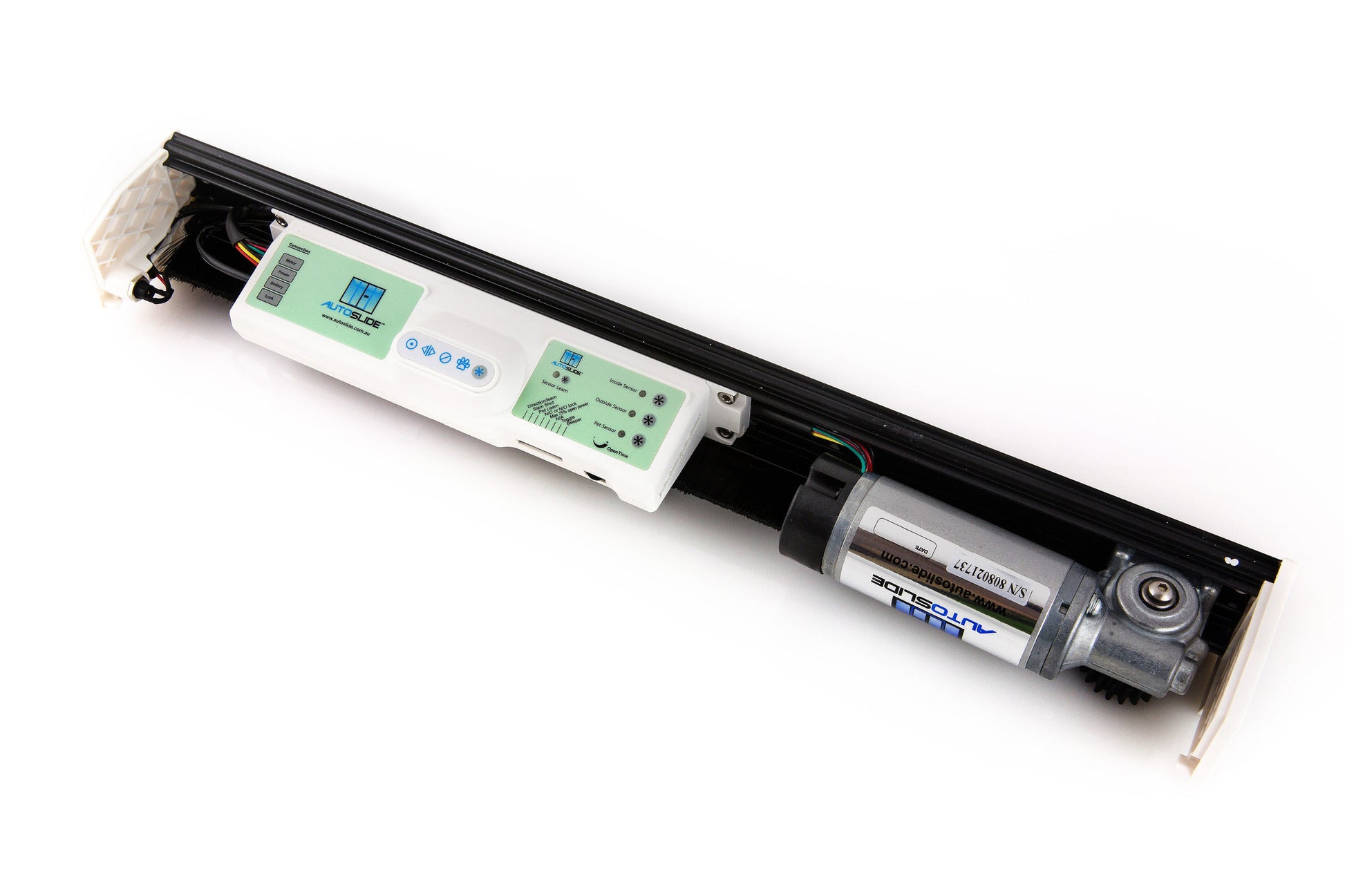

Autoslide is a compact home automation system designed to automate sliding doors and windows in the home and light commercial areas. The system consists of a motor device, an electronic controller, and a low voltage DC power supply encased in an aluminum slim line housing. Your door is activated by the specially designed wall-mounted wireless push-buttons that are installed on both sides of the opening Additional activation devices are available, such as the infrared motion sensors,  as an optional upgrade.

Starter Kit Package Includes

• One Autoslide™ iLock drive system
• One Aluminium cover

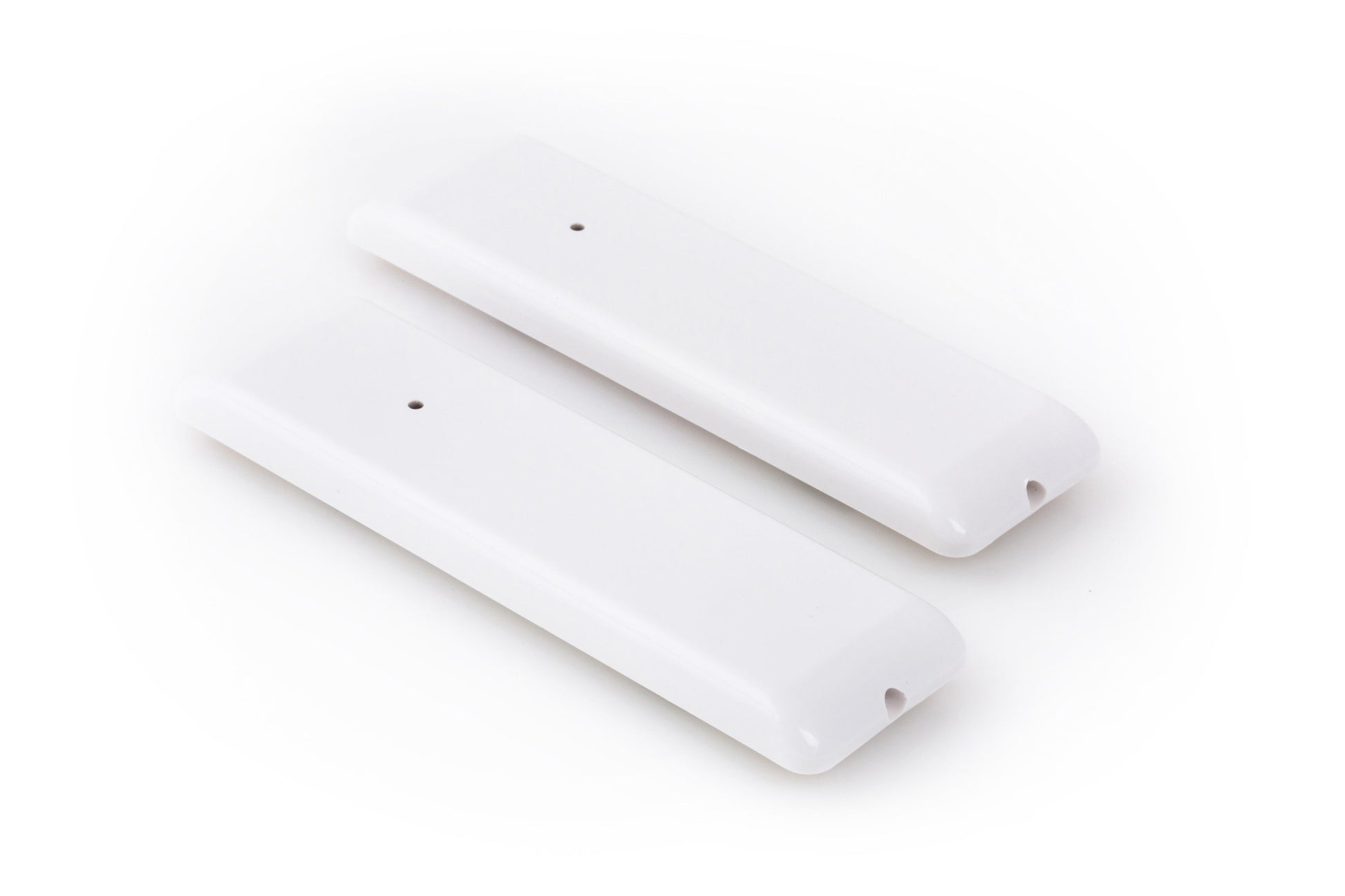

• Two Wall Mounted Wireless Push Buttons
• One Low voltage plug-in power pack
• Two 20" racks with assembly kit
• Friction Tester
• Installation screws and Allen key
• Instruction booklet & Installation DVD

Technical Specifications

Maximum Door Weight: 200 lbs
Maximum Drag Weight: 12 lbs.
Color: Black or White
Maximum Door Width: 38 inches with included tracks (additional width possible with the purchase of Extension Rack)
Power Supply: 110-240 VAC, 24 VDC Power Pack
Safety Cut Off: Yes
Automatic to Manual Mode: Yes
Warranty: 2 year

Autoslide Physical Size

Weight: 8 lbs.
Length: 19 inches (490mm)
Height: 2.75 inches (70mm)
Width: 2.5 inches (65mm)
